Master Engine Rebuild Kit With Standard Piston And Rod For 10HP K241 and M10
Master Engine Rebuild Kit With Standard Piston And Rod For 10HP K241 and M10

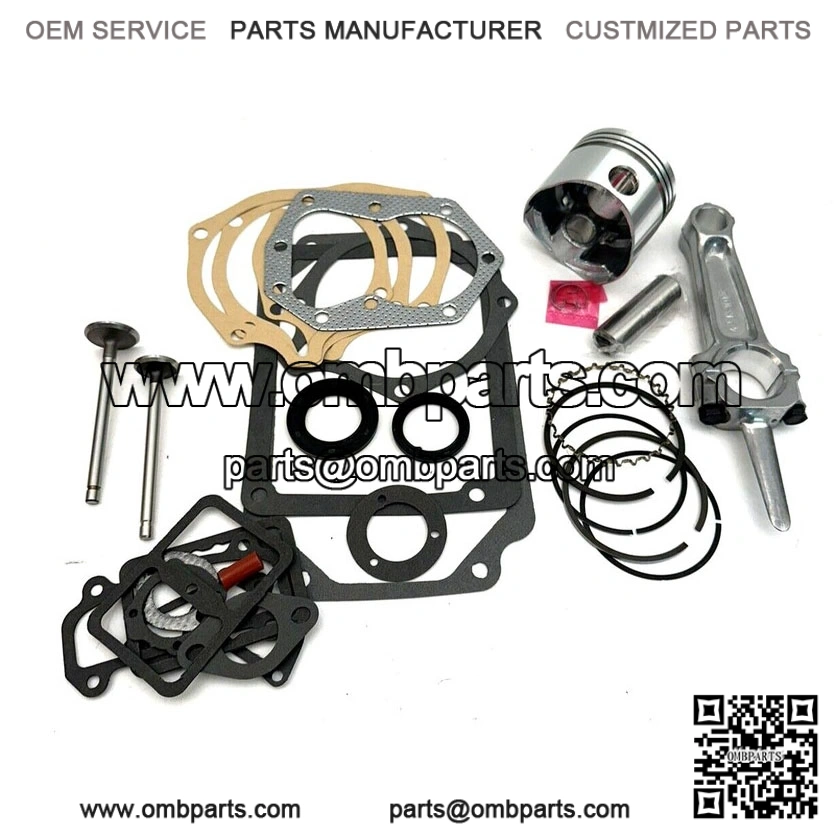

10 HP K241 and M10 KOHLER ENGINE REBUILD KIT
For ALL K241 engines ever made (suffix does not matter). Also fits M10.
Kit includes:

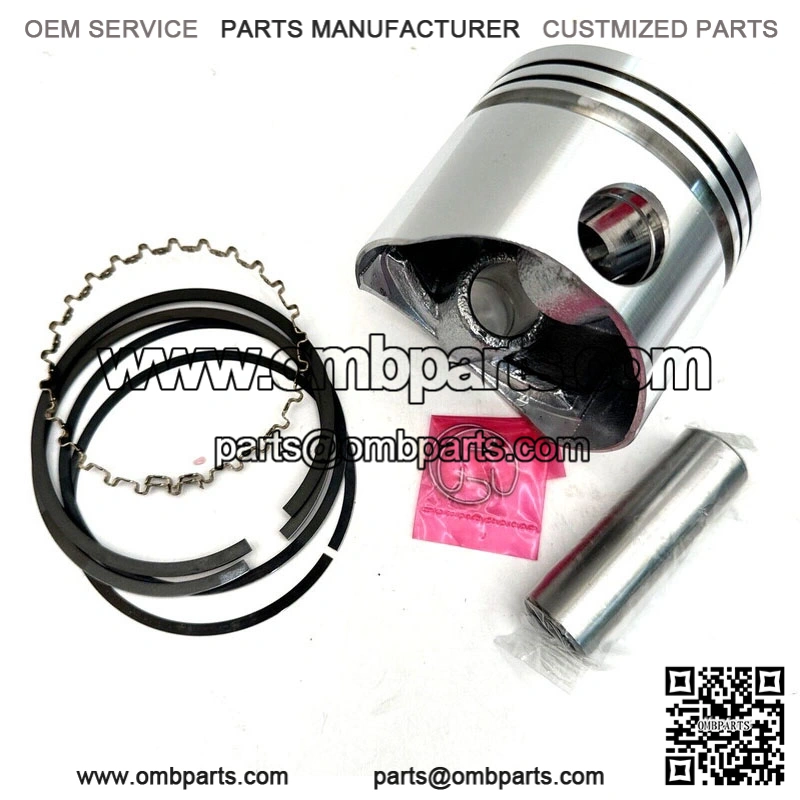

New Piston (choice of: standard, .020 over, .030 over)
Chrome Piston Rings
Wrist pin and Keepers
Connecting Rod (choice of: standard, .010 undersized, .020 undersized for $20 extra)

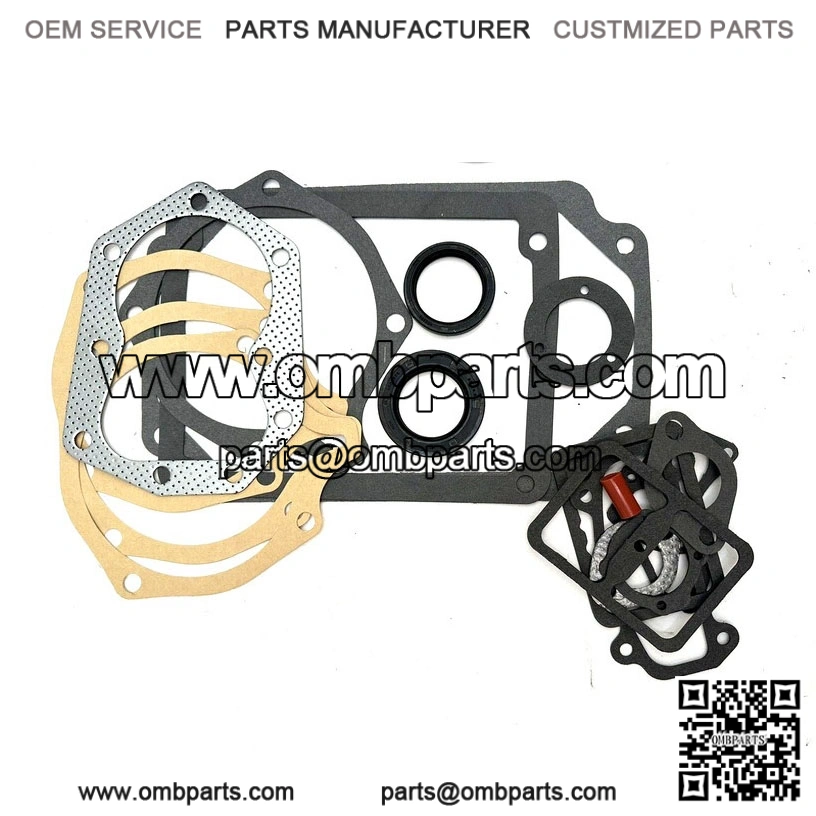

Complete Gasket Set
Engine Seals
Intake Valve 1.372″
Exhaust Valve 1.125″
Cylinder bore specifications (for reference):
Standard: 3.251″
+.010: 3.261″
+.020: 3.271″
+.030: 3.281″
Rod specifications:
Standard: 1.500″
-.010: 1.490″
-.020: 1.480″
