GJ.24397

GJ.24397(1)

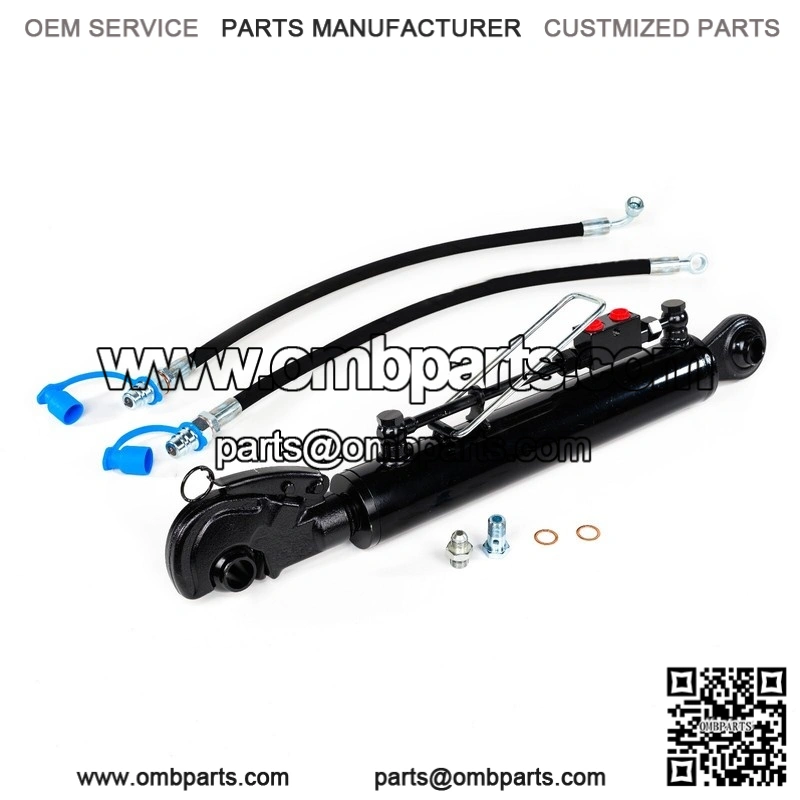

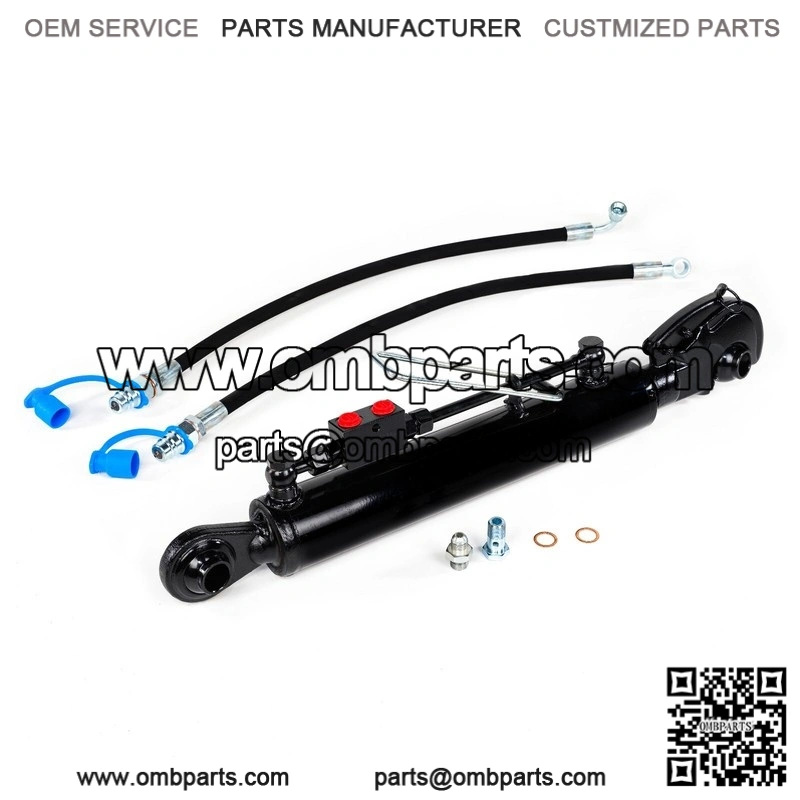

Hydraulic Top Link Cat. 2 with 250mm Stroke & Locking Block, Hoses Included

SKU GJ.24397 Category ATV Parts Tag tool

Hydraulic Top Link Cat. 2 with 250mm Stroke & Locking Block, Hoses Included

Furnishing:
High quality and workmanship and painted
Incl. Locking block
Top link cat. 2
2x hydraulic connection
Delivery is completely assembled
Technical specifications:
Hydraulic connection: 3/8 ”
Hydraulic pressure max. 200 bar
Thrust: 6850 kg to
Pulling force: 3950 kg to
Weight about 16 kg
+
2 x hydraulic hose with 1/2″ Quick Coupler and dust cover
Technical specifications:
Connection: 12-L bulkhead size 3 (usual coupling connector), 18-1.5 SW22 nipple + union
Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
Operating pressure: 180 bar
Length: 75 cm
