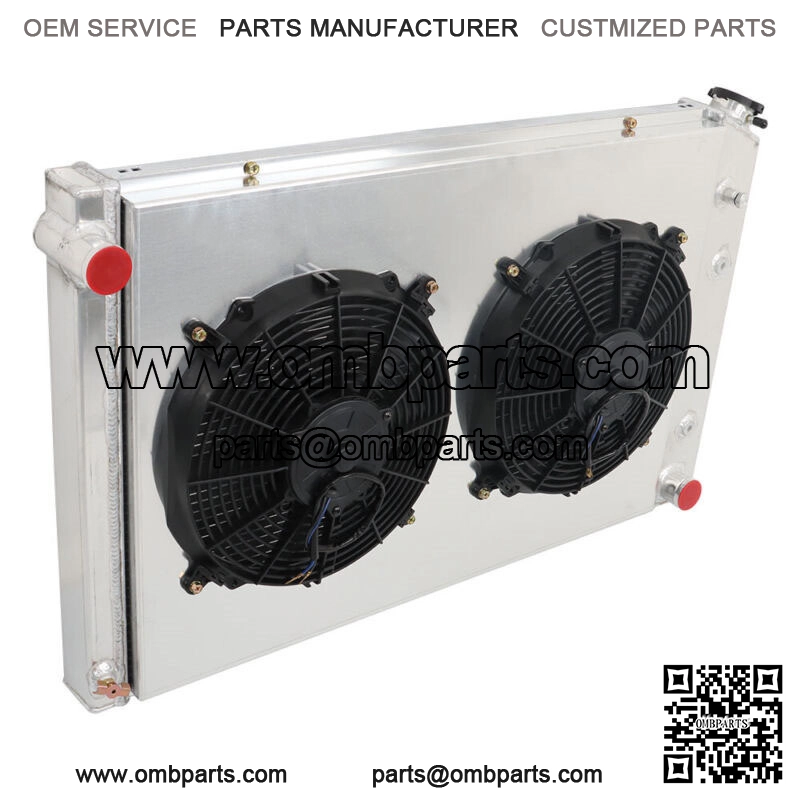

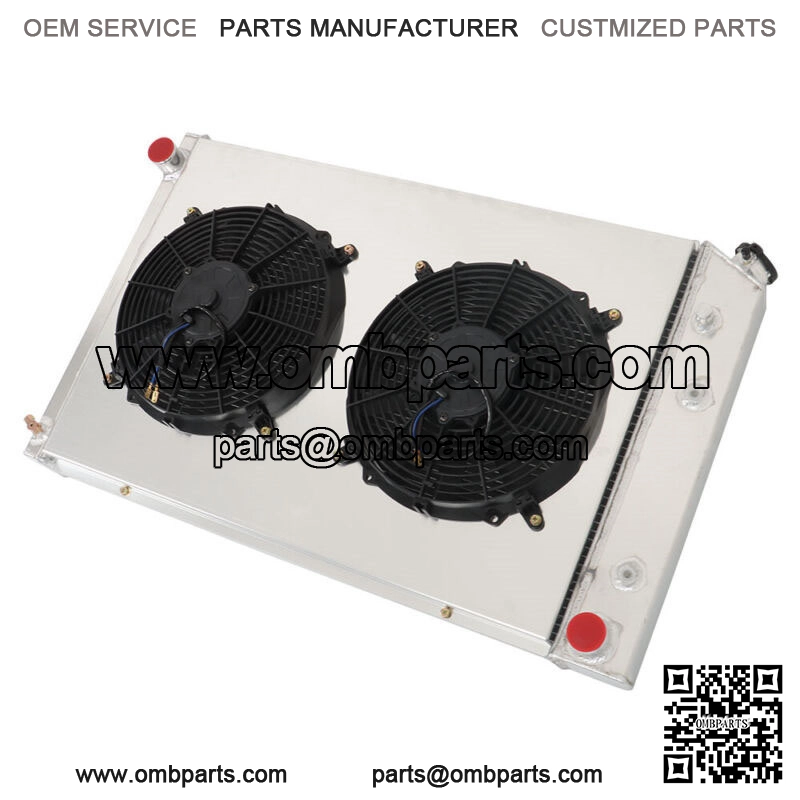

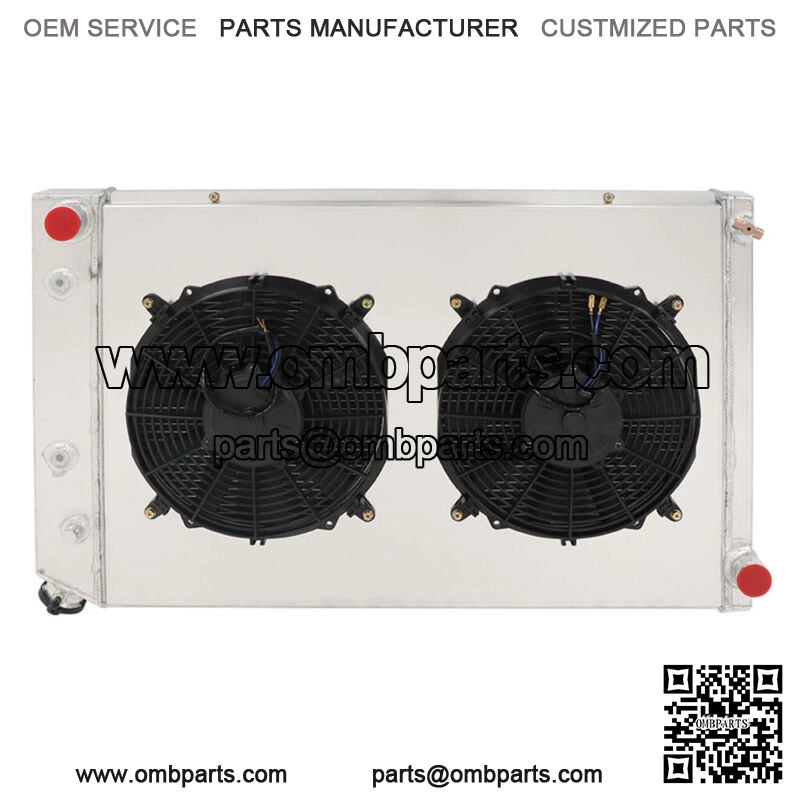

For 1973-1987 GMC Chevy C/K C10 C20 C30 K10/20 Truck CC716 3 Rows Radiator&Fan

Description:
Part Number: 716/CC716/CU716/DPI716/CU1599/EC716/AE716/MC716
This Radiator Size:
3-Row of tubes Core Racing Design

Core Size:19″ Height x 28-1/4″ Width x 1 3/4″

Overall Size:20-1/4″ Height x 33-1/4″ Width

Upper Inlet Size:1 1/2″ located on the driver side

Lower Outlet Size:1 1/2″ located on the passenger side

Transmission Cooler: ??32??215??G1/4??Z??

ONLY For Engines using 28 1/4″ WIDTH X 19″ HEIGHT CORE. PLEASE CHECK SPECS TO VERIFY FIT
Fan Specification:
Diameter: 12” (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 90W

Fan Thickness: 2.5″

Number of Blades: 10 S-Type blades

Maximum Fan CFM??Cubic Feet per Minute??: 2150cfm

Maximum Fan RPM??Revolution(s) Per Minute??: 2000??10%

S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect

Powerful 80 watt motor will keep your engine cool.
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

Comes on at 185o AND Turns off at 165o.

Probe typically threads into radiator, water outlet or manifold.

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

This set up will run Fans & pull air in through radiator.
Fitment:For 1990 Chevrolet Blazer / Gmc V3500
For 1975 1979 1981 1983 Chevrolet C10 4.1l 4.8l 5.0l 5.7l 6.2l 6.6l 7.4l
For 1974 1975 1979 1985 Chevrolet C10 Suburban
For 1976 1980 1981 1982 1986 Chevrolet C20 4.1l 4.3l 4.8l 5.0l 5.7l 6.2l 7.4l
For 1974 1975 1979 1983 Chevrolet C20 Suburban
For 1977 1982 1986 Chevrolet C30
For 1974 Chevrolet C30 Pickup
For 1978 1979 1982 1986 Chevrolet K10
For 1973 Chevrolet K10 Pickup / Gmc P35/P3500 Van
For 1979 1984 Chevrolet K10 Suburban
For 1975 1979 1985 Chevrolet K20
For 1974 1978 1982 1986 Chevrolet K20 Suburban
For 1978 1984 Chevrolet K30
For 1974 Chevrolet K30 Pickup
For 1979 Chevrolet K5 Blazer 4.1l 5.0l 5.7l 6.6l
For 1973 Chevrolet P10 Van 4.1l 5.0l 5.7l 7.4l
For 1979 1983 1988 Chevrolet P20
For 1977 1981 1985 1993 Chevrolet P30
For 1974 Chevrolet P30 Van
For 1987 Chevrolet R10 / V30 Gmc R1500 Suburban / R2500 Suburban / V1500
For 1990 Chevrolet R1500 Suburban
For 1988 Chevrolet R20 Suburban/ V20 Suburban Gmc R3500
For 1990 Chevrolet R2500 Suburban 5.7l 6.2l 7.4l
For 1989 Chevrolet V1500 Suburban /Gmc V2500 Suburban
For 1973 1975 Gmc C15 / C1500 Pickup 4.1l 4.8l 5.0l 5.7l 7.4l
For 1976 GMC C15 Suburban / C35
For 1981 1985 Gmc C1500
For 1983 GMC C1500 Suburban
For 1977-1978 Gmc C25 / K35
For 1977 GMC C25 Suburban
For 1973 GMC C25 /C2500 Pickup / K25 /K2500 Suburban
For 1981 1982 1986 GMC C2500
For 1981 1985 GMC C2500 Suburban
For 1979 1982 1986 GMC C3500
For 1979 GMC G2500
For 1976 1980 1986 1990 GMC Jimmy
For 1975 GMC K15 / K15 Suburban / K25 / K25 Suburban
For 1974 GMC K15 /K1500 Pickup
For 1979 1982 1983 Gmc K1500
For 1979 1983 GMC K1500 Suburban/ K2500 / K2500 Suburban
For 1982 1986 GMC K3500
For 1980 GMC P1500 4.8l
For 1982 1989 GMC P2500
For 1975 GMC P35 4.8l 5.7l 7.4l
For 1983 1989 1993 GMC P3500
For 1988 1989 GMC V1500 Suburban Package:1X 3-Row Aluminum Radiator (Includes Radiator Cap)1X Aluminum Shroud2X 12″ Fans (Includes mounting kits)1X Thermostat Relay KitJust as pictures show
