Drive Pulleys & Belts Kit for Toro LX420, LX425, LX460, LX500 (Part #112-6133)

SKU PDP.05058 100335, 112-0892, 112-6133, 3-4243, 8205, 1120892, 1126133, 34243, 112-3687, 62-4540, 1123687, 624540, 112-0301, 1120301, 112-0305, 1120305 Category Tags ,

Drive Pulleys & Belts Kit for Toro LX420, LX425, LX460, LX500 (Part #112-6133)

Premium Quality Replacement Part
Drive Pulleys with Belts
Compatible with Toro Models:
Lawn Tractors
LX 420 (SN: 1L215B10000 & Above) (2006)
13AX60RG544, 13AX60RG744
LX 425 (SN: 1A087H10172 & Above) (2007)
13BX60RG544, 13BX60RG744, 13BX60RG748
LX 460 (SN: 1A056B50000 & Above) (2006)
13AX60RH544, 13AX60RH744
LX 500 13AP60RP544 (SN: 1A056B50000 & Above) (2006)
13AP60RP744 (SN: 1A096B50000 & Above) (2006)
Order Includes :
1 x Pulley: 100335, 112-0892, 112-6133, 3-4243, 8205
Width: 26.8mm – 1.05 in
Inner Diameter : 9.2mm – 0.36 in
Outer Diameter : 78mm – 3.0 in
Material: Steel
2 x Transmission Pulley: 112-3687, 62-4540
Width : 30.6mm – 1.20 in
Inner Diameter : 9.0mm – 0.35 in
Outer Diameter : 82.2mm – 3.26 in
Material: Steel

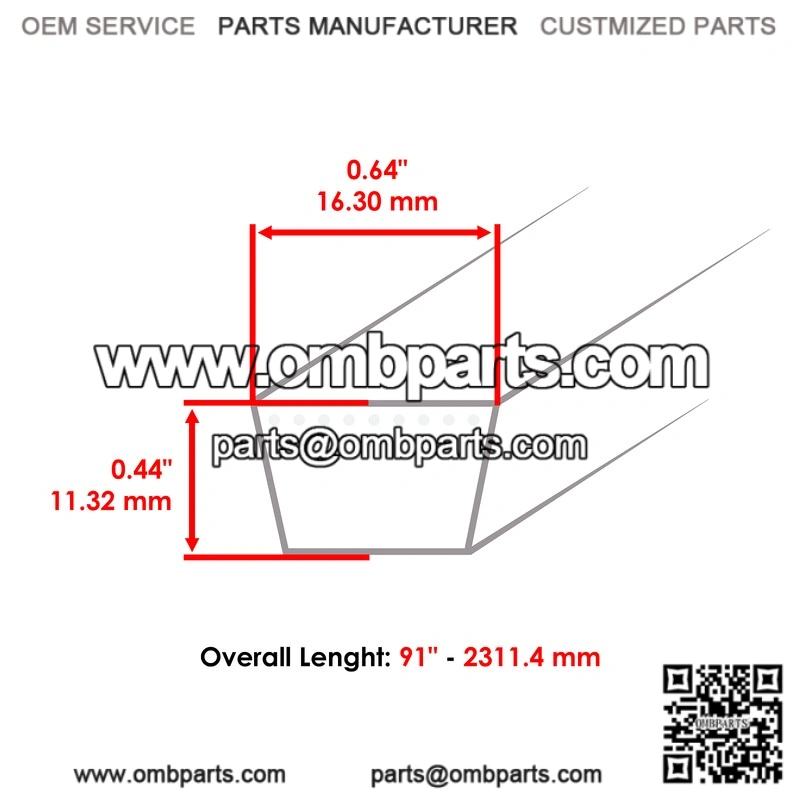

1 x Lower Drive Belt: 112-0301, 1120301
Overall Length: 2311.4mm – 91 in
Width: 11.32mm – 0.44 in
Thickness: 16.30mm – 0.64 in

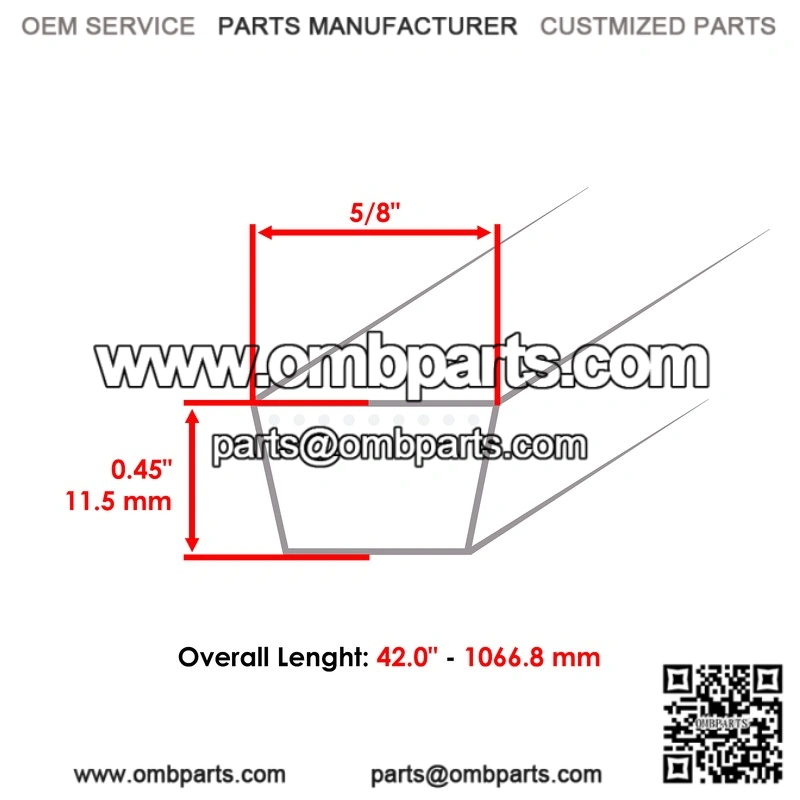

1 x Upper Drive Belt: 112-0305, 1120305
Overall Length: 1066.8mm – 42 in
Width: 15.875 mm – 0.625 in
Thickness: 11.5mm – 0.45 in
Material: Polyester
