2007 GMC Sierra 2500HD Trailer Hitch with 4-Pin Wiring - Standard Bumper

This Trailer Tow Hitch + 4-FlatFits The Following Vehicles:
2007 – 2007 GMC Sierra 2500 HD Classic Except Tommy Gate lift or cab & chassis Except factory receiver

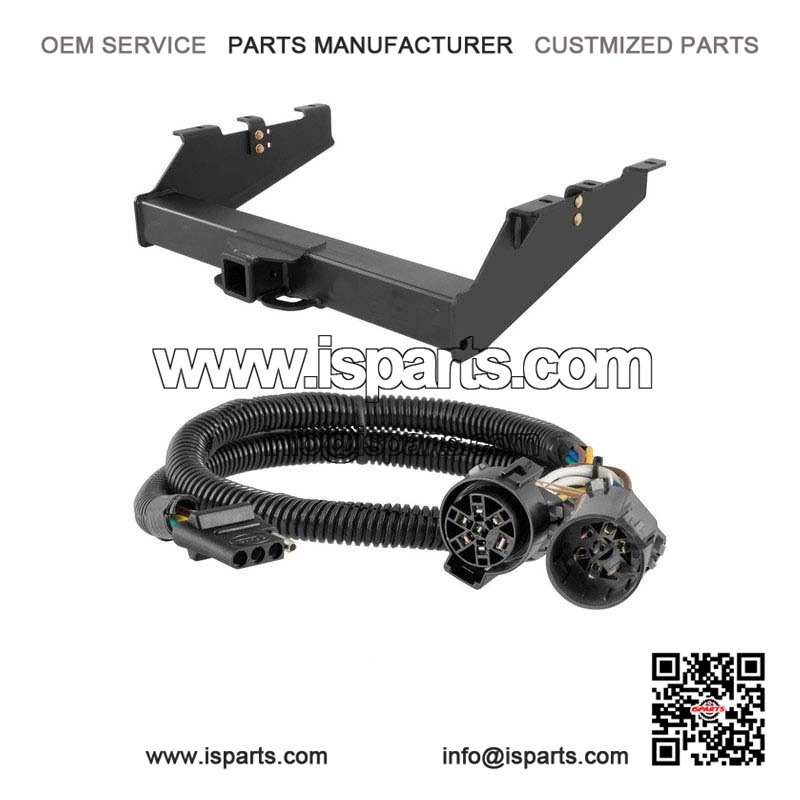

This Trailer Tow Hitch + 4-Flat Includes the Following Parts:
Commercial Duty Class 5 Hitch, 2-1/2″ (Easy Bolt-On, No Drilling)
Replacement OE 4-Way Flat Socket (T’s into USCAR)
Installation instructions, schematics, diagrams, and hardware (if required).
List ofFitment Years:
2007
15703 Commercial Duty Class 5 Trailer Hitch, 2-1/2-Inch Receiver
In the world of commercial towing, more is expected A job cannot be completed if the equipment cannot handle the workload That is why developed the Commercial Duty class 5 trailer hitch.
Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component) This particular class 5 hitchFeatures a gross trailer weight capacity of 18,000 lbs.
and a tongue weight capacity of 2,700 lbs It is designed to be a custom trailer hitch for certain years of the Chevy Silverado 2500, 2500 HD, 2500 HD Classic, 3500, 3500 HD or 3500 Classic and GMC Sierra 2500, 2500 HD, 2500 HD Classic, 3500, 3500 HD or 3500 Classic (to verify your vehicle compatibility, see application info) All Commercial Duty class 5 hitchesFeature a 2-1/2″ x 2-1/2″ receiver tube opening to accept the strongest of ball mounts and towing accessories.
They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish They also mount with grade-8 hardware, included with each hitch..
Features:
Rated to 18,000 lbs. gross trailer weight and 2,700 lbs. tongue weight
Compatible with weight distribution hitch (18,000 lbs. WD / 2,700 lbs. WDTW)
Engineered with a vehicle-specific design for a customFit
Tested for safety in accordance with SAE J684
Precisely welded for superior strength andFit
Constructed with a large, powerful main body
Protected by a highly durable carbide powder coat finish
Co-cured in a rust-resistant liquid A-coat, inside and out
Features wide safety chain openings for heavy-duty hooks
Equipped with an open-back receiver for easy cleaning
55384 Replacement Vehicle-Side Custom USCAR 4-Pin Trailer Wiring Harness
Stress is the last thing you should feel when towing a trailer — whether you’re hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it custom wiring connectors are the easiest way to outfit your vehicle with a trailer wiring connection.
They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring Though this special socket is not equipped on every vehicle, a custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation.
Rather than requiring you to cut, splice and solder into your vehicle’s wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard vehicle-to-trailer wiring connection, typically in the form a 4-way flat All custom wiring connectors are made vehicle-specific for the easiest possible installation and the bestFit This particular connector provides a 4-way flat socket while retaining use of the existing OEM socket.
It is designed to be a custom wiring option for a variety of vehicles (see application info to verifyFitment with your vehicle) It comes with a dust cover to keep the connector socket clean when not in use..
Features:
Replacement OE 4-Way Flat Socket (T’s into USCAR)
Plugs into USCAR connection to add 4-way flat and retain use of existing socket
Simple plug-and-play design eliminates the need for cutting or splicing
4-way flat output connects tail lights, brake lights and turn signals
Dust cover included to keep connector clean when not in use
Slit loom keeps wires contained and well protected
