1323035 1323103 1323193 Primary Drive Clutch Rebuild Kit for Polaris
1323035 1323103 1323193 Primary Drive Clutch Rebuild Kit for Polaris
1323035 1323103 1323193 Primary Drive Clutch Rebuild Kit for Polaris
Premium Quality Replacement Part
Primary Drive Clutch Rebuild Kit
For Polaris Models:
Ranger 900 XP 2013-2014Ranger Crew 900 2014-2015

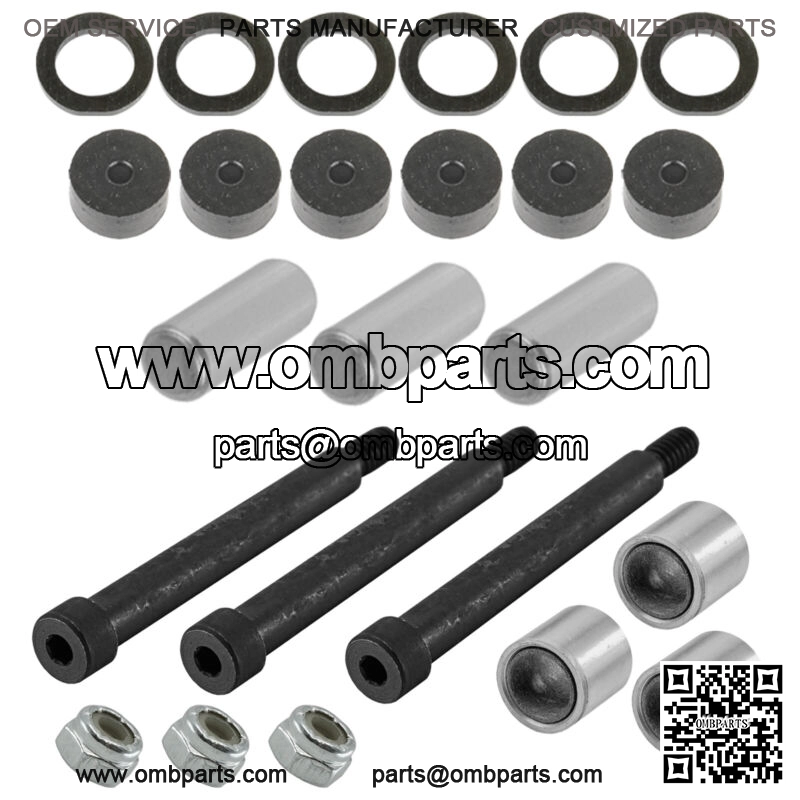

Order Includes:

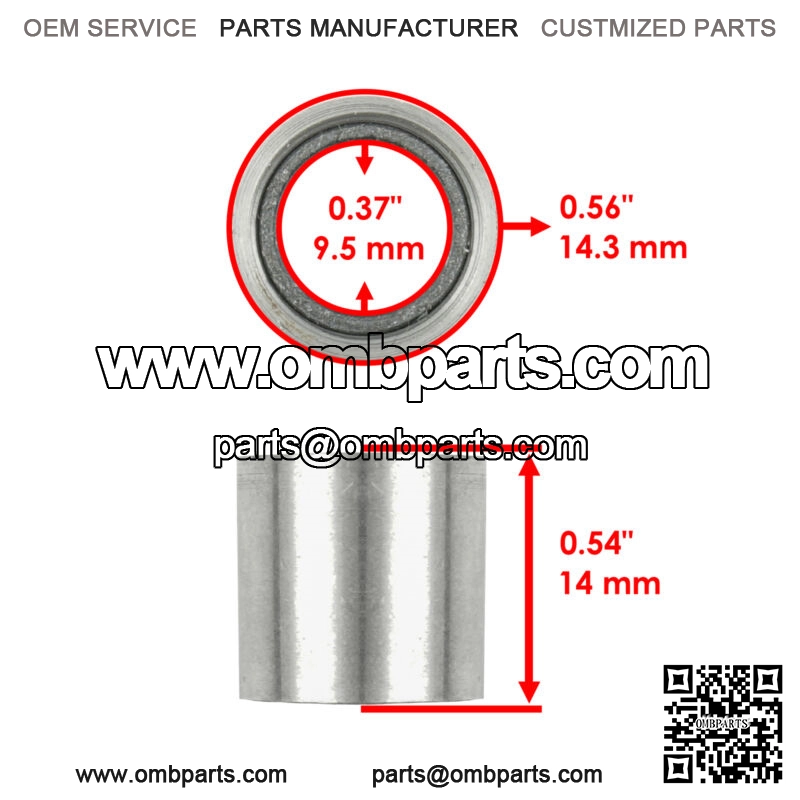

3 x Roller | 1321622Width: 14.0 mm | 0.54″Outer Diameter: 14.3 mm | 0.56″Inner Diameter: 9.5 mm | 0.37″

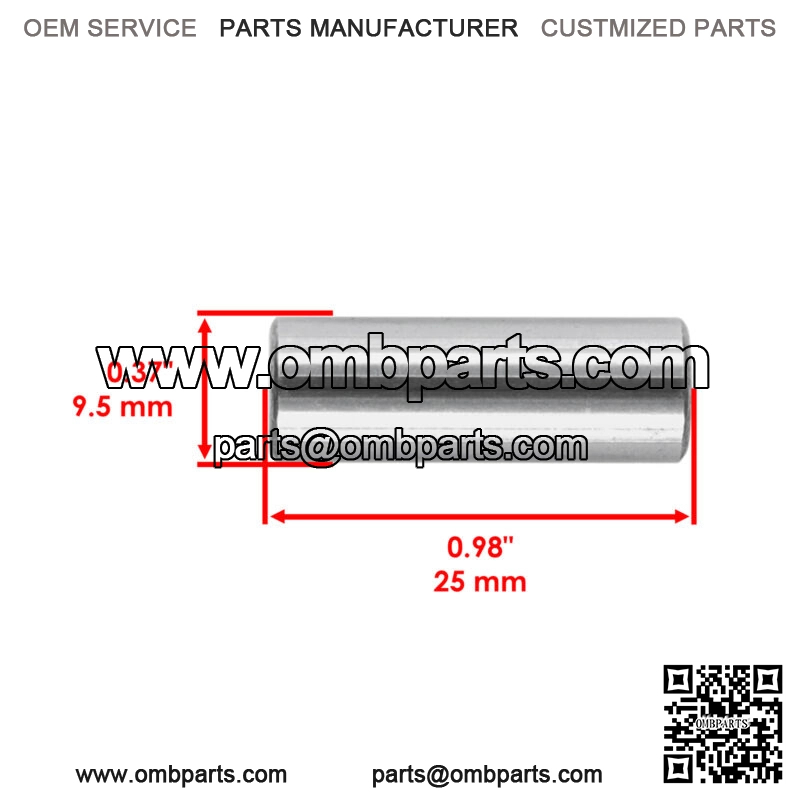

3 x Roller Pin I 5020422
Length: 25 mm | 0.98″Width: 9.5 mm | 0.37″

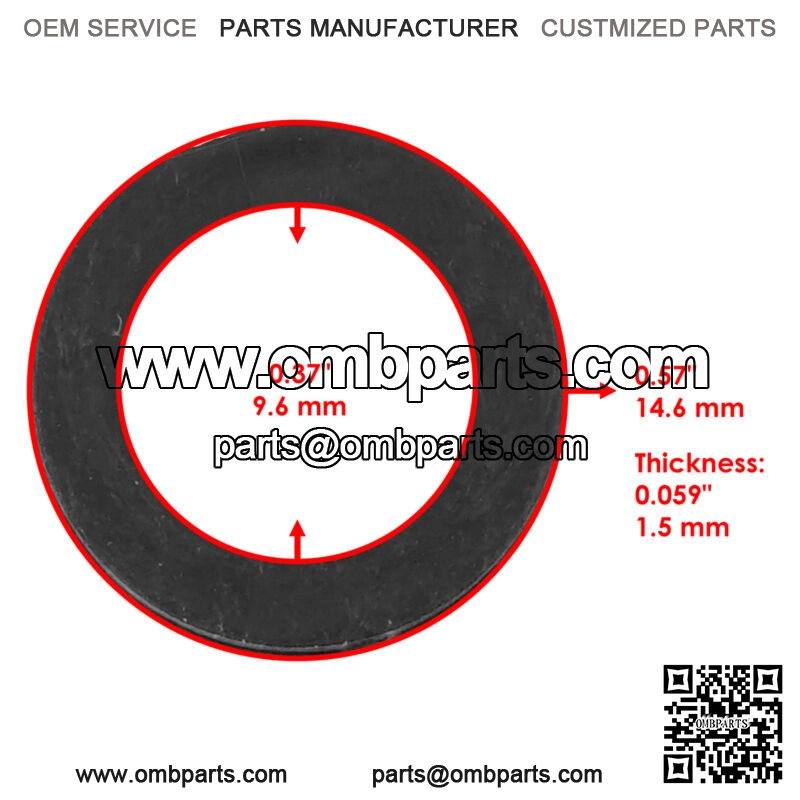

6 x Roller Washer | 5438247 5430702 5430945Outer Diameter: 14.6 mm | 0.57″Inner Diameter: 9.6 mm | 0.37″Thickness: 1.5 mm | 0.059″
6 x Button | 5439254 5431936Outer Diameter: | 14 mm | 0.55″
Height: 6.5 mm | 0.25″

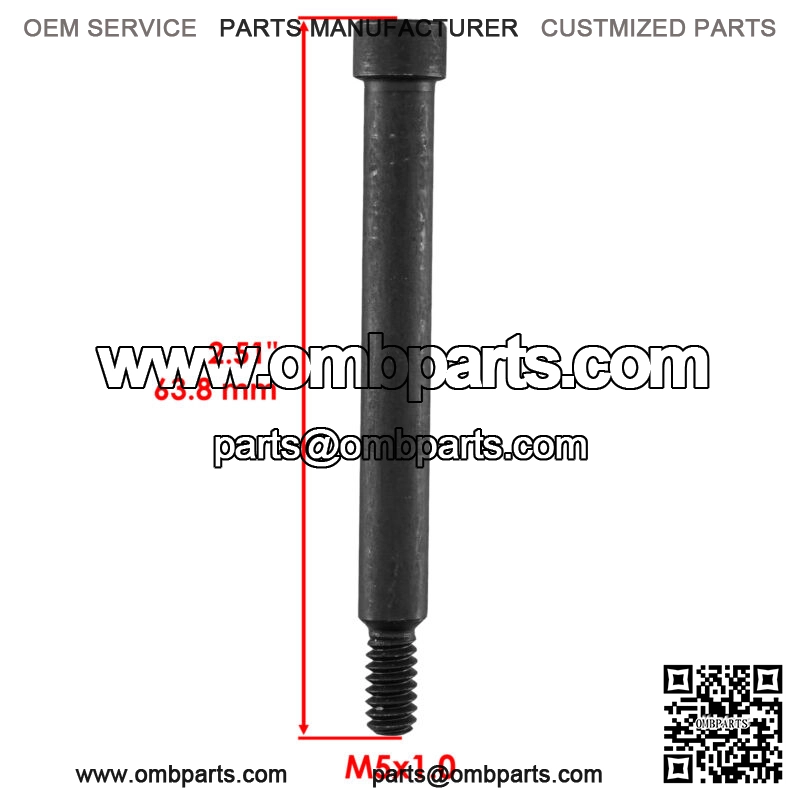

3 x Shoulder Bolt (Socket Head Cap Screw) | 7512266
Length: 63.8 mm | 2.51″ | M5 x 1.0
3 x Flexloc Nut | 7541906 3235320Inner Diameter: 4 mm | 0.15″ | M X 1.0Height: 6.1 mm | 024″
**
